SPECIFICATIONS



AC Current: 2mA/20mA/200mA/10A



Diode Test: Yes

NCV induction: Yes

Automatic shut-down: Yes

Date retention: Yes

On and off beep: Yes

Bright screen: Yes

Flashlight: Yes

DC Voltage: 200mV/2V/20V/200V/600V

Brand Name: RUIBOZHI

AC Voltage: 200V/600V

Model Number: ANENG SZ302 Multimeter

DC Current: 2mA/20mA/200mA/10A

Display Type: Digital display

Measuring Resistance Range: 200/20k/200k/2M/200M

Measuring Capacitance Range: 20nF/200nF/20uF/2000uF

Measuring Inductance Range: ANENG Digital Multimeter

Certification: none

DIY Supplies: ELECTRICAL

Dimensions: 42.5x147.7x70.3 mm

Operating Temperature: 0 - 40 ℃

Is Smart Device: no

Operating Mode: Auto/Manual Ranging

Choice: yes

semi_Choice: yes

ANENG SZ302 Digital Multimeter AC/DC Current Votage Automatic Tester NCV Detector Resistance Ohm Ammeter Capacitance Meter

Describe:

ANENG SZ302 is a handheld digital multimeter, designed and produced according to international electrical safety standards, used to measure AC/DC voltage, AC/DC current, resistance, capacitance, diode and NCV and other functions

Feature:

Function	Range	Resolution	Accurate
DC voltage	200mV/2V/20V/200V/600V	0.1mV/1mV/10mV/0.1V/1V	±(0.5%+5)
AC voltage	200V/600V	100mV/1V	±(1%+5)
DC current	2mA/20mA/200mA/10.00A	0.001mA/0.01mA/0.1mA/0.01A	±(1.5%+8)
AC current	2mA/20mA/200mA/10.00A	0.001mA/0.01mA/0.1mA/0.01A	±(1.5%+8)
Resistance	200Ω/20kΩ/200kΩ/2MΩ/200MΩ	0.1Ω/10Ω/100Ω/1kΩ/100kΩ	±(4.0%+10)
Capacitance	20nF/200nF/20uF/2000uF	0.01nF/0.1nF/0.01uF/1uF	±(5.0%+10)
Diode	√	On and off beep	√
Flashlight	√	Data retention	√
Bright screen	√	NCV induction	√
Indicator light	√	Automatic shut-down	√
Battery	No.5 AA battery*2	BAT 1.5V	√
Model	SZ302	Pen material	PVC/Brass
Max count	2000 counts	Overall length of test leads	74MM

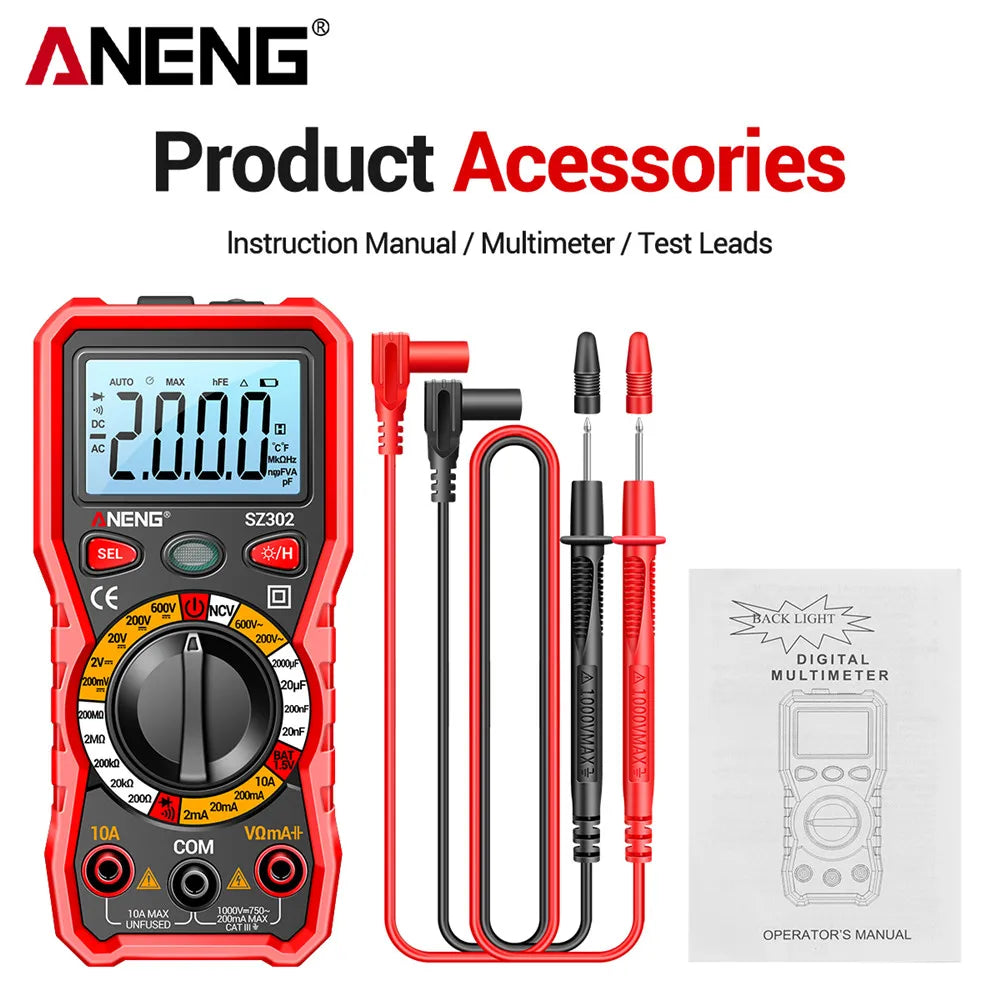

Packaging content:
1 x Multimeter (Without battery)
1 x Test lead
1 x User Manua
